Inspection

Press the MODE switch more then 4 times within 2 seconds while pressing the OFF switch.

Display	Fail description
00	Normal
50	Cluster ion generator fault

* For diagnostic procedure, refer to DTC guide.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the glove box housing. (Refer to Body - "Glove Box Housing")

3.	Remove the passenger's side shower duct (A) after loosening the screw.

4.	Remove the in-car hose (A).

5.	Remove the in-car hose pipe (A) after loosening the screw.

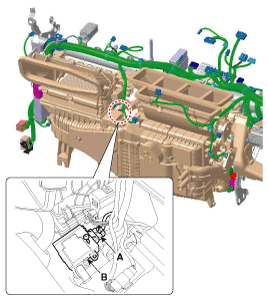

6.	Disconnect the cluster ionizer connector (A).

7.	Remove the cluster ionizer (B) after loosening the screw.

8.	Install in the reverse order of removal.
