Components

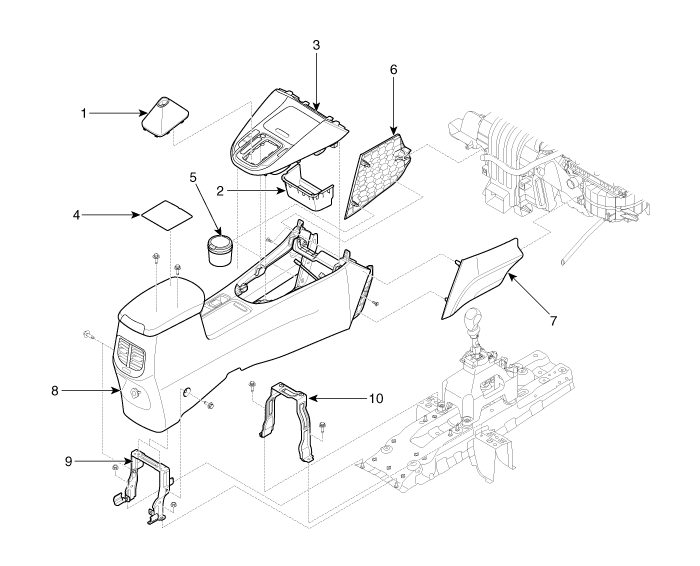

[M/T]

1. Gear boots
2. Floor console front tray
3. Floor console upper cover
4. Console armrest met
5. Ash tray

6. Console extension cover [LH]
7. Console extension cover [RH]
8. Floor console assembly
9. Console rear mounting bracket
10. Console front mounting bracket

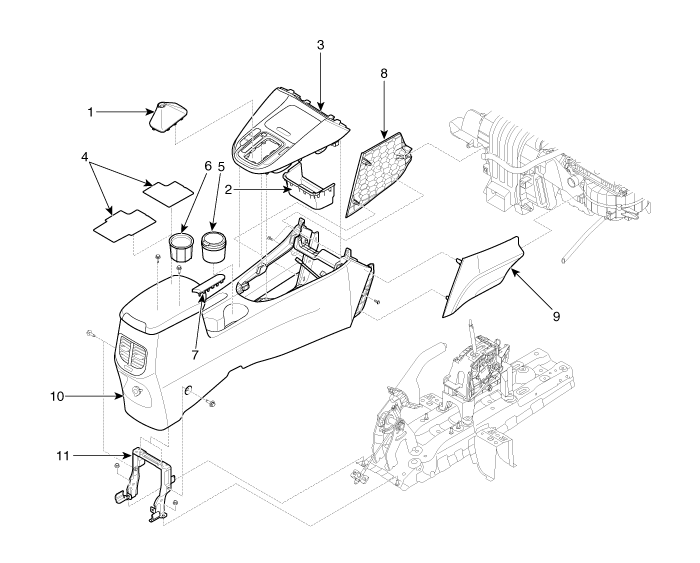

[A/T]

1. Gear boots
2. Floor console front tray
3. Floor console upper cover
4. Console armrest met
5. Ash tray
6. Suplement cup holder

7. Parking brake cover
8. Console extension cover [LH]
9. Console extension cover [RH]
10. Floor console assembly
11. Console rear mounting bracket
