Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Power Door Mirrors / Components and components location

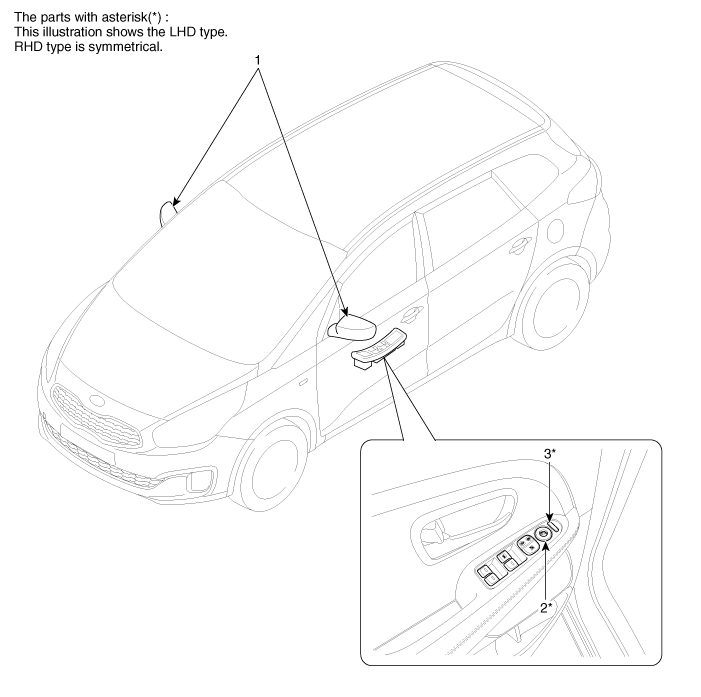

Component Location

1. Power door mirror
2. Power door mirror switch

3. Power folding mirror switch

Power Door Mirrors

...

Power Door Mirror Switch Schematic diagrams

Circuit Diagram ...
