Kia Carens: Front / Rear Parking Assist System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Front / Rear Parking Assist System / Components and components location

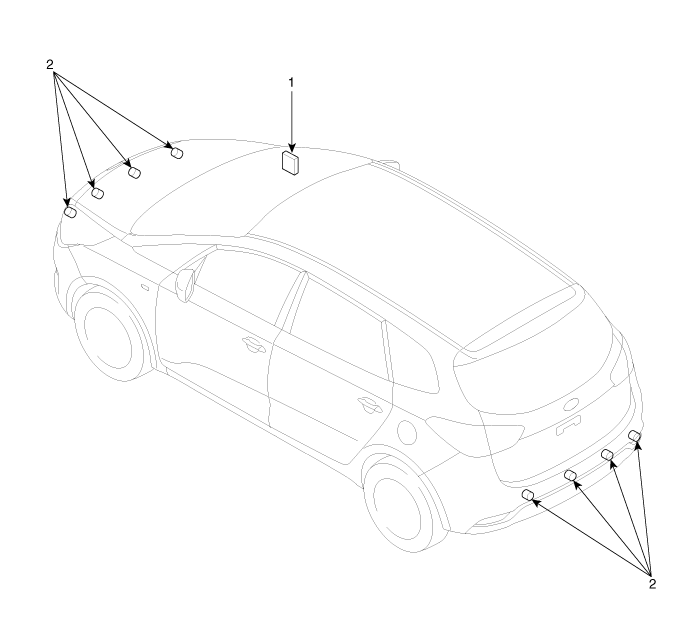

Component Location

1. BCM

2. Ultrasonic sensor

※ Parking assist control unit function and buzzer are built in BCM (body control unit).

Specifications

Specifications Item Specification Front/Rear parking assist system control unit Rated voltage DC 12V ...

Description and operation

System Configuration PAS consists of 8 sensors(Front 4 EA, Rear 4EA) which are detecting the obstacles and transmit the result separated into three warning levels, the first, second ...
