Kia Carens: Cooling System / Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Mechanical System / Cooling System / Components and components location

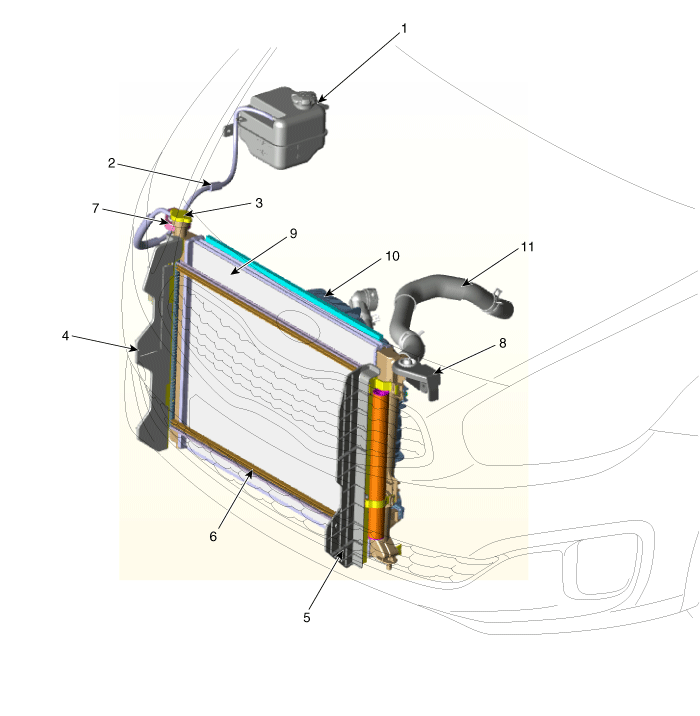

Components

1. Reservoir tank
2. Overflow hose
3. Radiator cap
4. Side air guard (RH)
5. Side air guard (LH)
6. A/C condenser

7. Radiator upper bracket (RH)
8. Radiator upper bracket (LH)
9. Radiator
10. Cooling fan
11. Radiator upper hose

Troubleshooting

Engine Overheat Troubleshooting Inspection Remedy Visual inspection Inspect for shortage of coolant in reservoir tank . ...
