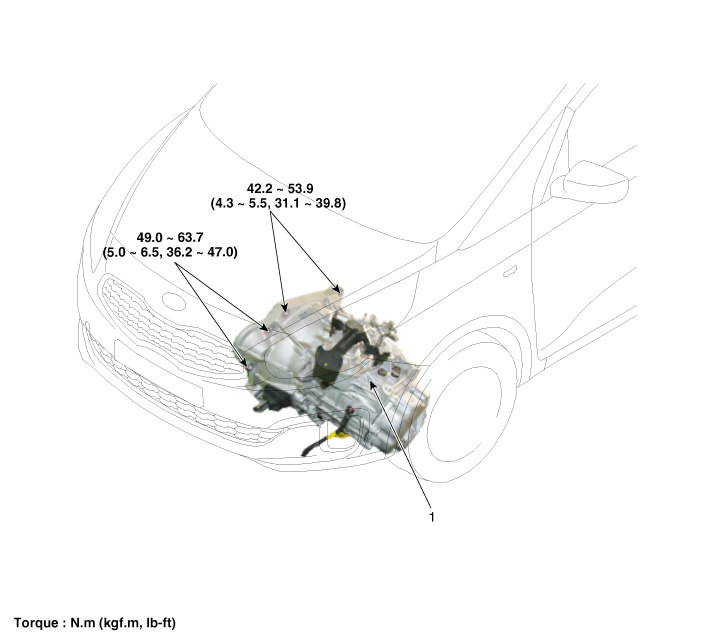

Components Location

1. Manual transaxle assembly

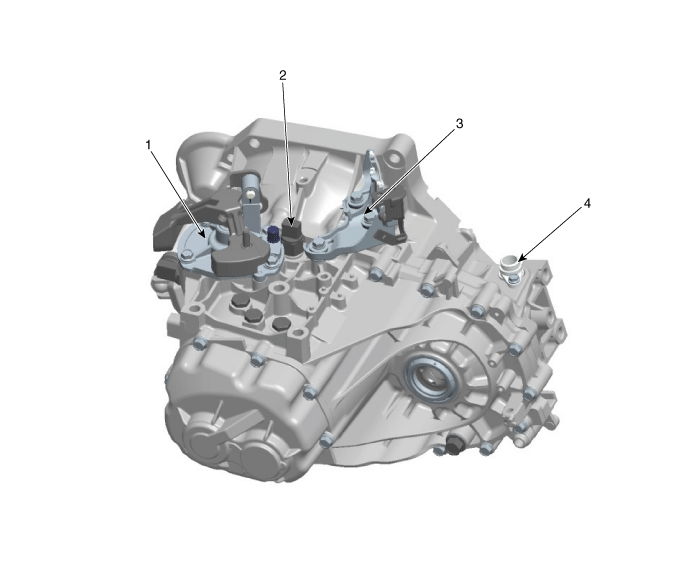

Components

1. Control shaft complete
2. Back-up lamp switch

3. Control cable bracket
4. Speed sensor

Repair procedures

Removal 1. Remove the air cleaner assembly and air duct. (Refer to Engine Mechanical System - "Air Cleaner") 2. Remo ...
