Kia Carens: Cruise Control System / Cruise Control Switch Components and components location

Kia Carens RP (2013-2018) Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Components and components location

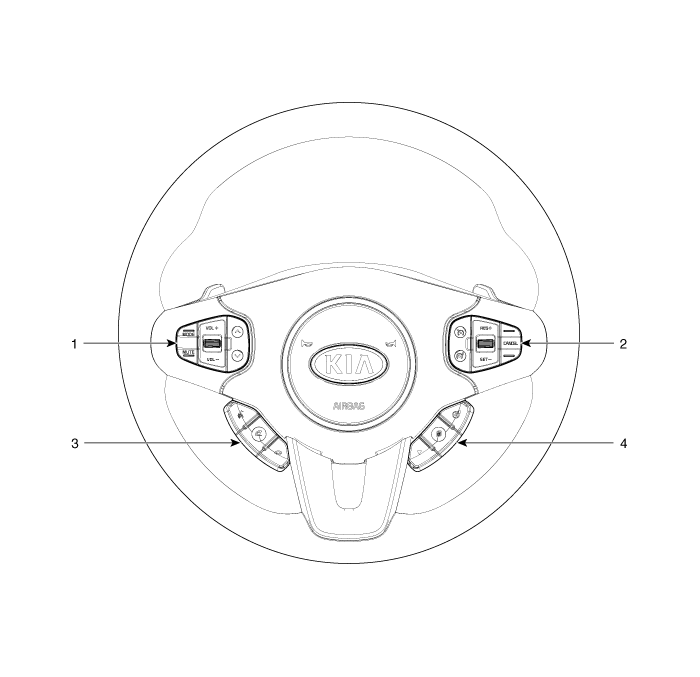

Components

1. Remote control switch (LH: Audio)
2. Remote control switch (RH: Cruise + Limit)

3. Bluetooth handfree switch
4. Trip switch (Trip + Flex)

Troubleshooting

Trouble Symptom Charts Trouble Symptom 1 Trouble Symptom 2 Trouble symptom Probable cause Remedy The set veh ...

Cruise Control Switch Schematic diagrams

Circuit Diagram ...
