Description

Idle Stop & Go (ISG) function automatically switches off the engine when the car is at a standstill and the clutch is not operated and starts it again as soon as the clutch is operated. This not only reduces fuel consumption, it also lowers emissions.Idle Stop & Go (ISG) function also has a built-in sensitivity to driving safety and comfort.

The engine is not switched off if certain conditions relating to safety and comfort have not been fulfilled (For example, when the engine coolant is still cold, when the battery is running low or when the outside temperature is below 2°C). It can be deactivated by pressing the ISG OFF switch on the crashpad lower panel.

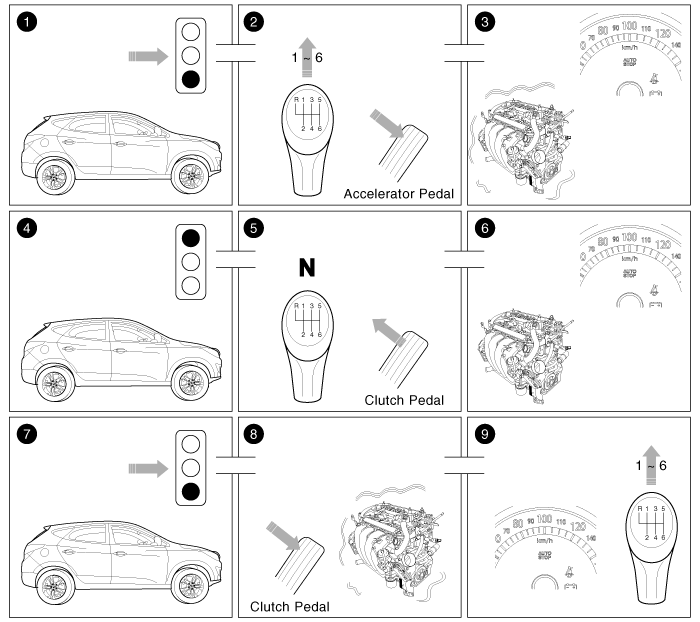

Sample scenario: switching off the engine at a standstill at a red traffic light or in stop-and-go traffic.

1.	Vehicle moving.

2.	Gear is engaged. The accelerator pedal is pressed.

3.	The engine is running.

4.	The driver brakes until the vehicle comes to a standstill.

5.	The driver engages neutral and releases the clutch pedal.

6.	The engine stops. The symbol "AUTO STOP" lights up in the instrument cluster.

7.	The driver wants to continue the journey.

8.	The driver presses the clutch pedal. The engine starts.

9.	The gear can be engaged and the journey continued. The symbol "AUTO STOP" goes out.

Battery Sensor

The battery sensor perceives battery status. Battery status is a major influencing factor on the ISG function. The aim is to enable a reliable start of the combustion engine after a defined parking period from the perspective of the vehicle energy system.

The Battery sensor monitors the following data:

–	Battery charge condition

–	Battery temperature

–	Voltage dip on engine start

Brake Booster Vacuum Pressure Sensor

In order to ensure adequate brake power assistance in every situation, the brake booster is equipped with a partial vacuum sensor. The brake booster vacuum pressure sensor is located beside the brake booster.

With a brake partial vacuum that is too low, the ISG fuction also starts without activity on the part of the driver.Insufficient brake partial vacuum can lead to safety risks during braking manoeuvres, when rolling on an incline. To prevent this, the engine is started.

AGM battery

In all cases, the ISG function comes with the intelligent alternator control. The much more frequent charge and discharge cycles mean that the load on the battery is very high. The cycle resistance of AGM batteries means that they achieve similar results with regard to service life despite the high load.

Ensure an AGM battery is fitted.

In all cases, an AGM battery must be installed and registered in the vehicle for the ISG function to work perfectly.

DC/DC converter

Due to the considerably more frequent occurrence of starting operations, the electrical load that occurs often leads to voltage dips in the vehicle network. In order to stabilize the power supply for certain voltage-sensitive electrical components, a DC/DC converter is used in conjunction with the ISG function.

The DC DC converter supplies the relay with a voltage that also remains constant during the starting operation.

Via the test leads for input voltage and the start relay , the electronics decide whether the power is supplied to the output via the bypass or the DC/DC converter.

In the bypass mode, the on-board supply voltage is not fed across the DC/DC converter, rather is transferred directly to the outputs. In the booster phase, the vehicle voltage is adapted.

[200W]

[400W]

ISG OFF Switch

The ISG OFF switch on the crashpad lower panel can be used to deactivate the ISG function.

Alternator

The battery discharge during the engine shutdown by the ISG function means that a more powerful alternator is installed.

Starter motor

In conjunction with the ISG function, the starter motor must do a great deal more work. The starter motor is therefore configured for a significantly higher number of start cycles. The components of the starter motor have been adapted to the higher requirements.

Neutral Switch

The neutral switch is mounted on top of the transmission case.

The neutral switch detects the idle position of the gearstick.

Clutch Switch

The present clutch switch is used as an input variable for the ISG function to detect clutch operation.

Seat Belt/door Switch (Driver)

Via the seat belt/Door switch, the ISG function can detect that the driver has fastened the seat belt/door. If the driver has not fastened the seat belt/door, the ISG function reacts as follows. If the seat belt or door is opened, the engine must not be started or stopped by the ISG function for safety reasons.

Hood switch

The hood switch is included as the influencing factors in the calculation of the ISG function. If the hood is open, the engine must not be started or stopped by the ISG function for safety reasons.

Operation Condition for the ISG function

After every engine start, the function is automatically active and on stand-by. The ISG OFF switch can be used to deactivate the function manually until the next terminal change. Pressing the switch is confirmed by an lamp lighting up.

1. Idle Stop (Idle → Stop) Condition

▶ Common Condition : Neutral Status & Clutch Pedal Released

Conditions Required

The engine coolant temperature is not too low (Over 45 degree).

Not DPF regeneration

Not inhibitor condition for operating strategy or engine fault

–	CKPS, CMPS, ECTS, VSS, Battery sensor, BBVPS, Neutral Switch, Clutch Switch, APS, Injector

Battery charge status is adequately high.

Not communication line error - LIN, CAN

Vehicle speed less than 5kph

Vehicle speed over 10kph at least once after key starting or idle starting

ISG OFF switch off

Driver’s seat belt and Driver’s Door and hood are closed.

Battery temperature is between 2 to 55 degree.

Brake booster pressure not to low.

Not Blower max.

2. Idle Start (Stop → Start) Condition

▶ Common Condition : Neutral Status & Clutch Pedal Pressed

Conditions Required

Not inhibitor condition for operating strategy or engine fault

–	CKPS, CMPS, ECTS, VSS, Battery sensor, Neutral Switch, Clutch Switch, APS

Not communication line error - LIN, CAN

Driver’s seat belt and Driver’s Door or hood are closed.

Engine stalled, then changed gear position (engaged → neutral) and pressed clutch pedal.

If error occurred in the idle stop status, it is possible to start the engine by the key only.

3. Auto-starting (Stop → Start) Condition

The engine will start automatically without the driver's action if any of the following occurs:

▶ Common Condition : Neutral Status & Clutch Pedal Released

Conditions Required

Not inhibitor condition for operating strategy

–	TPS, CKPS, CMPS, ECTS, VSS, Battery sensor, BBVPS, Neutral Switch, Clutch Switch

Brake booster vacuum pressure is low.

When the battery charge status is low.

A certain amount of time has passed after the air conditioning is On.

Vehicle speed is over 5kph by rolling down a hill.

Blower Max.

ISG system deactivation by fault

–	Fault in communication line (LIN/CAN)

–	Fault neutral switch

–	Fault brake booster vacuum pressure sensor

–	Fault clutch switch

When the ISG related sensors or system error occurs, the ISG OFF switch lights up.

Especially when the battery sensor is replaced or reinstalled, the vehicle must be placed in the ignition switch OFF for about 4 hours for recalibration.

The ISG function is operated about 4 hours later normally. But in the case of first 25 times, the ISG function can be operated regardless of recalibration.

When the engine is in Idle stop mode, it's possible to restart the engine without the driver taking any action.

Before leaving the car or doing anything in the engine room area, stop the engine by turning the ignition key to the LOCK position or removing it.

Components and components location

Components Location 1. Battery Sensor 2. Brake Booster Vacuum Pressure Sensor (BBVPS) 3. AGM Battery 4. DC DC Converter [200W Type] 5. DC DC Converter [400 ...

Troubleshooting

Troubleshooting If ISG function is not operated, check the related DTC codes. (Refer to DTC guide.) If the ISG function is not operated in spite of no DTC, inspect the ISG syst ...
