Kia Carens: Smart key / Door lock/unlock in an emergency situation
If the smart key does not operate normally, you can lock or unlock the doors
by using the mechanical key.

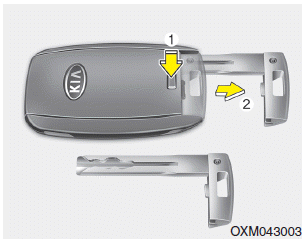

1. Press and hold the release button (1) and remove the mechanical key (2).
2. Insert the key into the hole of the outside door handle. Turn the key toward
the rear of the vehicle to unlock and toward the front of the vehicle to lock.
3. To reinstall the mechanical key, put the key into the hole and push it until
a click sound is heard.
✽ NOTICE
If, for some reason, you happen to lose your smart key, you will not
be able to start the engine. Tow the vehicle, if necessary, we recommend that
you contact an authorized Kia dealer ...
Vehicles equipped with a theft alarm system will have a label attached to the
vehicle with the following words:
1.WARNING
2. SECURITY SYSTEM
This system is designed to provide protection from unaut ...
