Kia Carens: Engine Control System / ETC (Electronic Throttle Control) System Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / ETC (Electronic Throttle Control) System Schematic diagrams

Circuit Diagram

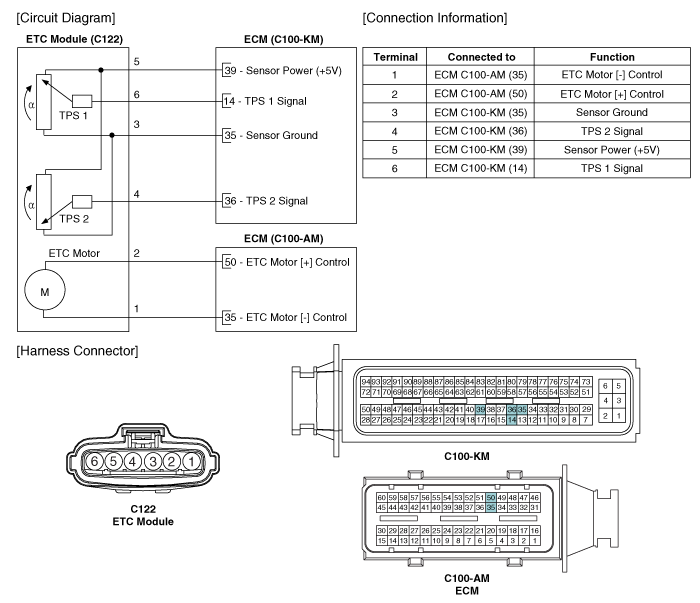

(M/T)

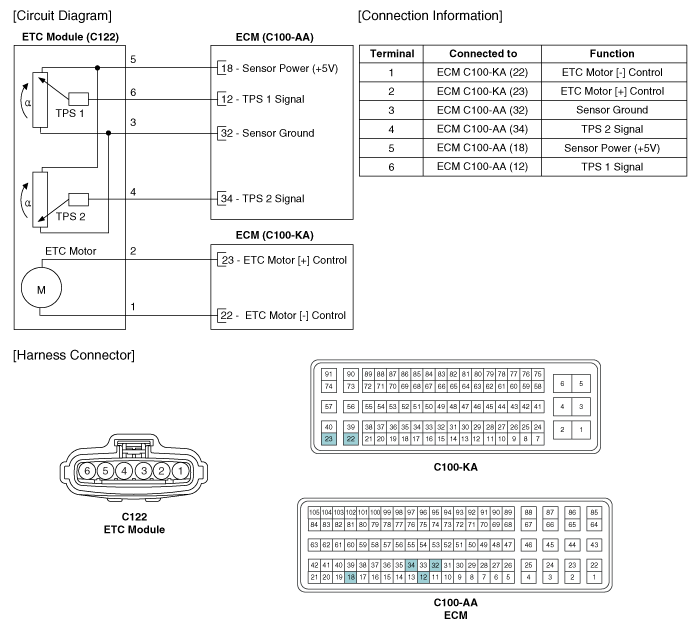

(A/T)

ETC (Electronic Throttle Control) System Specifications

Specification [Throttle Position Sensor (TPS)] Throttle angle(°) Output Voltage (V) [Vref=5V] TPS1 TPS2 0 ...

ETC (Electronic Throttle Control) System Repair procedures

Inspection Throttle Position Sensor (TPS) 1. Connect the GDS on the Data Link Connector (DLC). 2. Start the engine and measure the o ...
