Kia Carens: Interior features / Floor mat anchor(s)

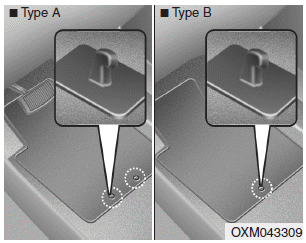

When using a floor mat on the front floor carpet, make sure it attaches to the
floor mat anchor(s) in your vehicle. This keeps the floor mat from sliding forward.
WARNING
The following must be observed when installing ANY floor mat to the vehicle.
- Ensure that the floor mats are securely attached to the vehicle’s floor
mat anchor(s) before driving the vehicle.
- Do not use ANY floor mat that cannot be firmly attached to the vehicle’s
floor mat anchors.
- Do not stack floor mats on top of one another (e.g. all-weather rubber
mat on top of a carpeted floor mat). Only a single floor mat should be installed
in each position. IMPORTANT – Your vehicle was manufactured with driver’s side
floor mat anchors that are designed to securely hold the floor mat in place.
To avoid any interference with pedal operation, Kia recommends that the Kia
floor mat designed for use in your vehicle be installed.
