| Identification Numbers |

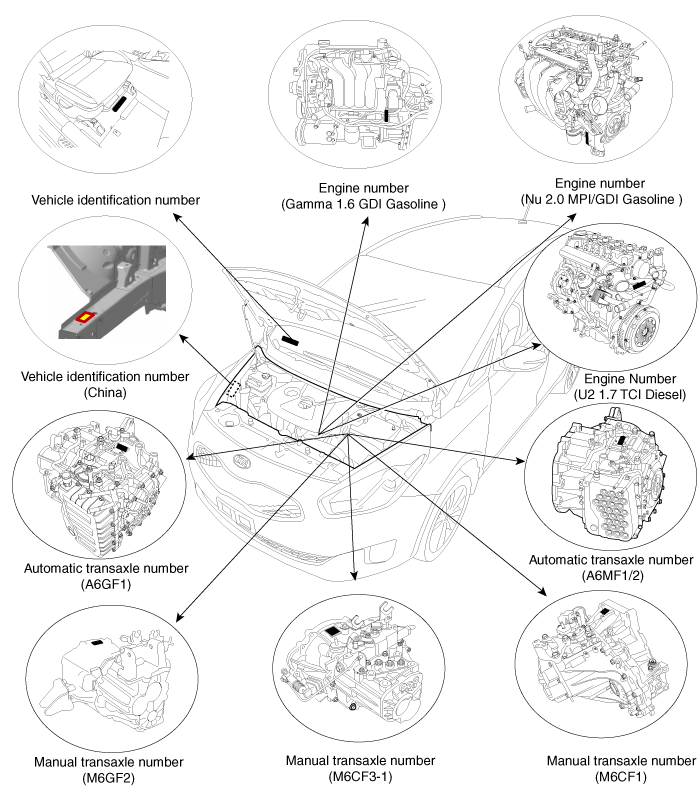

Identification Number Description
Vehicle Identification Number
| 1. |
World Manufacturer Identifier (WMI)
- KNA : Passenger vehicle, MPV(Multipurpose Passenger Vehicle)/SUV(Sports
Utility Vehicle)/RV(Recreational Vehicle)
- KNC : Commercial vehicle (Van)
- KND : MPV/SUV/RV (For U.S.A, Canada, Mexico)
- KNH : Van
|
| 2. |
Vehicle line
- H : CARENS/RONDO
|
| 3. |
Model & Series
- S : Low grade (L)
- T : Middle-Low grade (GL)
- U : Middle grade (GLS, JSL, TAX)
- V : Middle-High grade (HGS)
- W : High grade (TOP)
|
| 4. |
Body/Cabin type, Gross Vehicle Weight Rating
KNA
- 1 : Limousine
- 2 : Sedan - 2 door
- 3 : Sedan - 3 door
- 4 : Sedan - 4 door
- 5 : Sedan - 5 door
- 6 : Coupe
- 7 : Convertible
- 8 : Wagon
- 9 : Commercial Van
- 0 : Pick-Up
KNC (Commercial vehicle / Van)
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- X : Standard Cabin / Semi-Bonnet
- Y : Double Cabin / Bonnet
- Z : Super Cabin / Box
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China
- 2 : Standard Cabin Class-H 4×2
- 3 : Standard Cabin Class-E 4×2 / Semi-Bonnet Class-E 4×2
- 4 : Standard Cabin Class-E 4×4 / Semi-Bonnet Class-E 4×4
- 5 : Standard Cabin Class-F 4×2 / Semi-Bonnet Class-F 4×2
- 6 : Standard Cabin Class-F 4×4 / Semi-Bonnet Class-F 4×4
- 7 : Double Cabin Class-E 4×2 / Bonnet Class-E 4×2
- 8 : Double Cabin Class-E 4×4 / Bonnet Class-E 4×4
- 9 : Double Cabin Class-F 4×2 / Bonnet Class-F 4×2
- 0 : Double Cabin Class-F 4×4 / Bonnet Class-F 4×4
- A : Super Cabin Class-E 4×2 / Box Class-E 4×2
- B : Super Cabin Class-E 4×4 / Box Class-E 4×4
- C : Super Cabin Class-F 4×2 / Box Class-F 4×2
- D : Super Cabin Class-F 4×4 / Box Class-F 4×4
KND
- 1 : Wagon 4×2 Class-A
- 2 : Wagon 4×2 Class-B
- 3 : Wagon 4×2 Class-C
- 4 : Wagon 4×2 Class-D
- 5 : Wagon 4×2 Class-E
- 6 : Wagon 4×2 Class-F
- 7 : Wagon 4×2 Class-G
- A : Wagon 4×4 Class-A
- B : Wagon 4×4 Class-B
- C : Wagon 4×4 Class-C
- D : Wagon 4×4 Class-D
- E : Wagon 4×4 Class-E
- F : Wagon 4×4 Class-F
- G : Wagon 4×4 Class-G
KNH
- 1 : Box
- 2 : Bonnet
- 3 : Semi-Bonnet
|
| 5. |
Restraint system, Brake system
KNA, KND
Except U.S.A, Canada, Mexico
- 0 : Both side - None
- 1 : Both side - Active belt
- 2 : Both side - Passive belt
For U.S.A, Canada, Mexico
KNC, KNH
Except U.S.A, Canada, Mexico
- 7 : Hydraulic brake system
- 8 : Pneumatic brake system
- 9 : Mixed brake system
For U.S.A, Canada, Mexico
- X : Hydraulic brake system
- Y : Pneumatic brake system
- Z : Mixed brake system
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6. |
Engine type
- 1 : Gasoline engine 1.6 GDI (Gamma)
- 2 : Gasoline engine 2.0 MPI (Nu)
- 3 : Gasoline engine 2.0 GDI (Nu)
- 5 : Diesel engine 1.7 TCI (U2)
|
| 7. |
Check digit or Driver’s side & Transmission
Except U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- A : LHD & MT
- B : LHD & AT
- C : LHD & MT+Transfer
- D : LHD & AT+Transfer
- E : LHD & CVT
- F : LHD & Decelerator
- G : LHD & DCT
- L : RHD & MT
- M : RHD & AT
- N : RHD & MT+Transfer
- S : RHD & AT+Transfer
- T : RHD & CVT
- U : RHD & Decelerator
- V : RHD & DCT
For U.S.A, Canada, Mexico, Gulf Cooperation Council, China, Yemen
- Check digit : 0 ~ 9, ×
|
| 8. |
Model year
- E : 2014, F : 2015, G : 2016, H : 2017 …
|
| 9. |
Plant of production
- 5 : Hwasung (Korea)
- 6 : Sohari (Korea)
- 7 : Kwangju (Korea)
- T : Seosan (Korea)
|
| 10. |
Vehicle production sequence number
- 000001 ~ 999999
|
Engine Number
| 1. |
Engine fuel
- G : Gasoline
- D : Diesel
|
| 2. |
Engine range
- 4 : 4 cycle 4 cylinder
|
| 3. |
Engine development order and capacity
- F : Gamma engine (Gasoline)
- N : Nu engine (Gasoline)
- F : U engine (Diesel)
|
| 4. |
Engine Capacity
- D : 1591cc (Gamma GDI)
- A : 1999cc (Nu MPI)
- C : 1999cc (Nu GDI)
- D : 1685cc (U TCI)
|
| 5. |
Production year
- D : 2013, E : 2014, F : 2015, G : 2016 …
|
| 6. |
Plant of production
- A : Asan (Korea)
- B : Beijing (China)
- H : Hwasung (Korea)
- K : Montgomery (U.S.A)
- M : Chennai (India)
- P : Poseung (Korea)
- S : Sohari (Korea)
- T : Izmit (Turkey)
- U : Ulsan (Korea)
- W : Shandong (China)
- Z : Zilina (Slovakia)
- 1 : Yancheng (China)
|
| 7. |
Engine production sequence number
- 000001 ~ 999999
|
Transaxle Number
Automatic
| 1. |
Model
- NA : A6GF1
- EB : A6MF1
- FB : A6MF2
|
| 2. |
Production year
- D : 2013, E : 2014, F : 2015, G : 2016 …
|
| 3. |
Final gear ratio
- U : 3.957 (A6GF1)
- U : 3.510 (A6MF1)
- A : 2.885 (A6MF2)
|
| 4. |
Detailed classification
- A : Gamma 1.6 GDI
- B or D : Nu 2.0 MPI / GDI
- A : U2 1.7 TCI
|
| 5. |
Plant of production
- 2 : HPT Plant 2
- 4 : HPT Plant 4
- U : Ulsan Plant 1
- S : Ulsan Plant 2
- H : Hwasung
|
| 6. |
Transaxle production sequence number
- 000001~999999
|
Manual (M6CF1)
| 1. |
Assembly code of plant
|
| 2. |
Production year
- D : 2013, E : 2014, F : 2015, G : 2016 …
|
| 3. |
Plant of production
- B : Beijing (China)
- H : Hwasung (Korea)
- J : Ostrava (Chech)
- M : Chennai (India)
- U : Ulsan (Korea)
- W : Wia
|
| 4. |
Transaxle production sequence number
- 000001 ~ 999999
|
Manual (M6CF3-1)
| 1. |
Model
- W : M6CF3-1
|
| 2. |
Production year
- D : 2013, E : 2014, F : 2015, G : 2016 …
|
| 3. |
Plant of production
- B : Beijing (China)
- J : Ostrava (Chech)
- M : Chennai (India)
- U : Ulsan (Korea)
- W : Hwasung
|
| 4. |
Speed
|
| 5. |
Spare
|
| 6. |
Final gear ratio
- E : 4.188 (Nu 2.0 MPI / GDI)
- C : 3.941 (U2 1.7 TCI)
- H : 3.706 (U2 1.7 TCI ECO PACK)
|
| 7. |
Transaxle production sequence number
- 000001 ~ 999999
|
Paint Code
|
Code |
Color |
|
K3Y |
Camden Beige |
|
KU9 |
Newport Blue |
|
K7N |
Galaxy Brown |
|
AJR |
Inferno Red |
|
1D |
Clear White |
|
3D |
Bright silver |
|
IM |
Titanium Silver |
|
9H |
Black Cherry |
