Kia Carens: Operating door locks from outside the vehicle / In case of an emergency
If the power door lock switch does not operate electrically, the only way to
lock the door(s) is with the mechanical key from the outside key hole.
You can lock the doors without the outside key hole as follows:
1. Open the door.

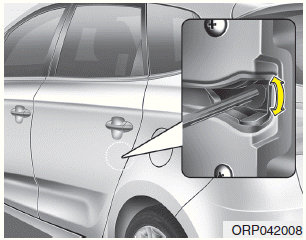

2. Insert the key into the emergency door lock hole and turn the key horizontally
to lock.
3. Close the door securely.
If the transmitter or smart key does not operate normally, you can lock
or unlock the doors by the mechanical key. Insert the key into the key hole
of the outside door handle. Turn the key towa ...
