Kia Carens RP (2013-2018) Owners Manual / Features of your vehicle / Instrument cluster / LCD Display Control

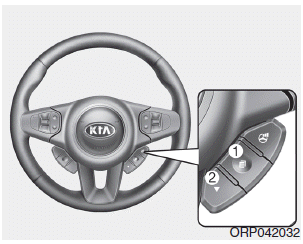

The LCD display modes can be changed by using the control buttons on the steering wheel.

[Type A]

(1) : TRIP button for changing trip modes
(2) : RESET button for resetting items

[Type B]

(1) : MODE button for changing modes or SELECT button for setting the selected item
(2) : MOVE button for changing items or RESET button for resetting the selected item

❈ For the LCD modes, refer to “LCD Display” in this chapter.

Adjusting Instrument Cluster Illumination

The brightness of the instrument panel illumination is changed by pressing the illumination control button (“+” or “-”) when the ignition switch or Engine Start/Stop button is ON, or the ta ...
