Kia Carens: Manual heating and air conditioning / Mode selection
.png)

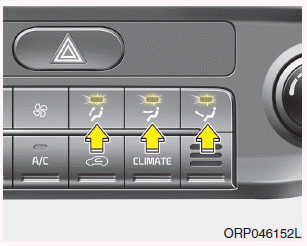

The mode selection button controls the direction of the airflow in the vehicle.
If you push the button once, the corresponding switch will turn on, and if you push the button again, the switch will turn off.
.png)

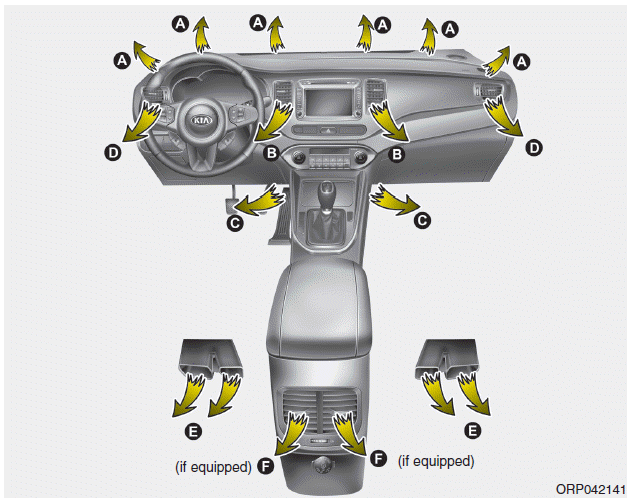

Face-Level (B, D, F*)
.png)
Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.
Floor-Level (A, C, D, E)
.png)
Most of the air flow is directed to the floor.
Defrost-Level (A, D)
.png)
Most of the air flow is directed to the windshield.
Also you may select 2~3 modes at the same time.
- face (.png)
) + floor (.png)
)
mode
- face () + defrost (.png)
)
mode
- floor () + defrost ()
mode
- face () + floor ()
+ defrost () mode
.png)

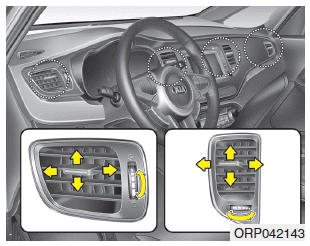

Instrument panel vents
The outlet vents can be opened or closed separately using the thumbwheel or vent control lever.
Also, you can adjust the direction of air delivery from these vents using the vent control lever as shown.
