Description

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

✽ NOTICE

Some driving information stored in the trip computer (for example Average Vehicle Speed) resets if the battery is disconnected.

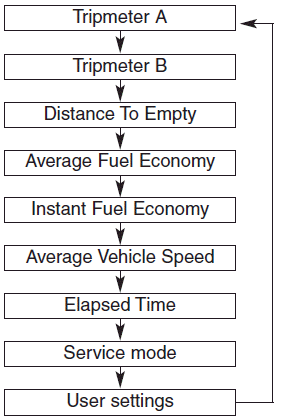

Trip Modes (Type A)

To change the trip mode, press the TRIP button .

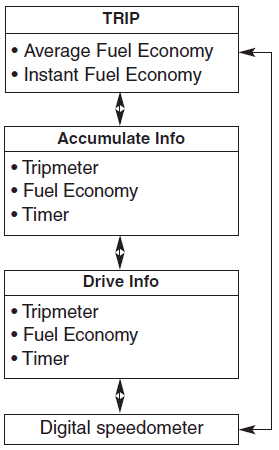

Trip Modes (Type B)

To change the trip mode, press the MOVE button .

Trip A/B (for Type A cluster)

Tripmeter (1) The tripmeter is the total driving distance since the last tripmeter reset. - Distance range: 0.0 ~ 9999.9 km or mi. To reset the tripmeter, press the RESET button on the steering ...
