Replacement
1.
Remove the roller blind.
(Refer to Panorama Sunroof - "Roller Blind")
2.
Disconnect the roller bind motor connecter (A).
3.
After loosening the mounting screws, then remove the roller blind motor (B).

4.
Disconnect the movable glass motor connecter (A).
5.
After loosening the mounting screws, then remove the movable glass motor (B).

6.
Remove the motor mounting wiring harness mounting tie cable (A).

7.
Remove both sides of the decoration cover (A) by pulling it in the direction of the arrow.

8.

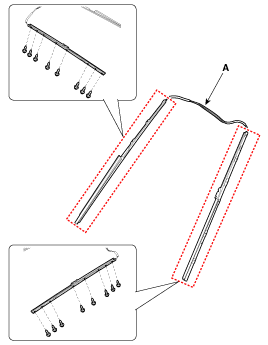

Loosen the panorama sunroof guide (A) mounting screws.

9.
Remove the center cover (A).

10.

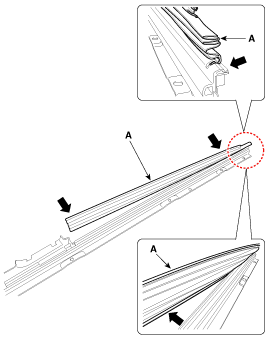

Remove the decoration cover (A) by pulling it in the direction of the arrow.


When installing the decoration cover (A), insert it into the groove in the direction of arrow.

11.
Install in the reverse order of removal.
