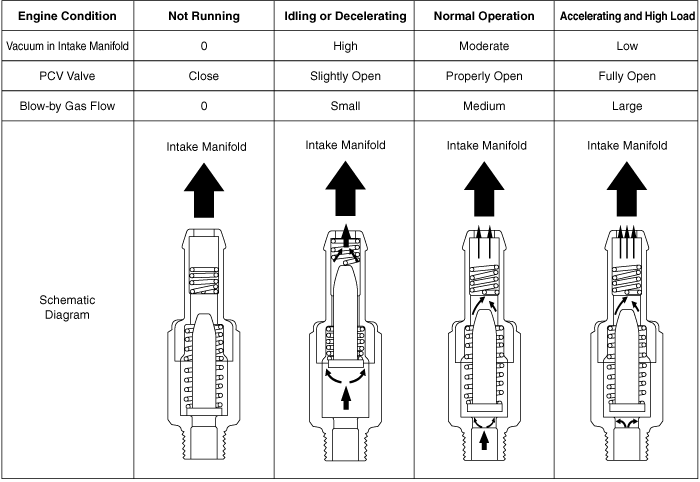

Kia Carens: Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve Description and operation

Repair procedures

Inspection 1. After disconnecting the vapor hose from the PCV valve, remove the PCV valve. 2. Reconnect the PCV valve to the vapor ...

Positive Crankcase Ventilation (PCV) Valve Repair procedures

Removal 1. Disconnect the vapor hose (A). 2. Remove the PCV valve (B). Inspection 1. ...
