Follow the steps 1 to 2 from the previous chapter.

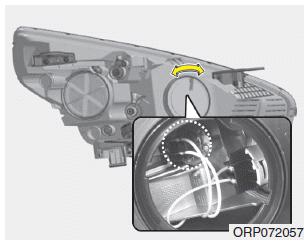

3. Remove the headlight bulb cover by turning it counterclockwise.

4. Disconnect the headlight bulb socket-connector.

5. Unsnap the headlight bulb retaining wire by depressing the end and pushing it upward.

6. Remove the bulb from the headlight assembly.

7. Install a new headlight bulb and snap the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb.

8. Connect the headlight bulb socket connector.

9. Install the headlight bulb cover by turning it clockwise.

10. Connect the power connector to the back of the headlight assembly.

Front light replacement

(1) Headlight (High) (2) Static bending light (3) Headlight (Low) (4) Position light/Daytime running light (DRL, LED Type) (if equipped) (5) Front turn signal light (6) Front fog light (if equipped) ...

Headlight (Low, High Non-HID Type)

Follow the steps 1 to 2 from the previous chapter. 3. Remove the headlight bulb cover by turning it counterclockwise. 4. Remove the socket from the assembly by turning the socket counterclockwise un ...
