Kia Carens: Cruise Control system / To set cruise control speed
.png)

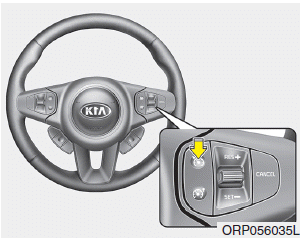

1.Press the cruise
button on the
steering wheel, to turn the system on. The cruise indicator light will illuminate.
2.Accelerate to the desired speed, which must be more than approximately 30 km/h
(20 mph).
✽ NOTICE - Manual transaxle
For manual transaxle vehicles, you should depress the brake pedal at least
once to set the cruise control after starting the engine.
.png)

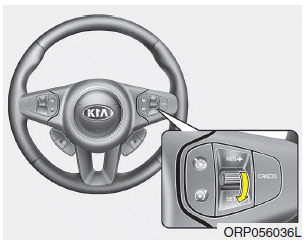

3.Move the lever down (to SET-), and release it at the desired speed.The cruise
set indicator light will illuminate. Release the accelerator pedal at the same time.
The desired speed will automatically be maintained.
On a steep grade, the vehicle may slow down or speed up slightly while going
downhill.
CANCEL : Cancels cruise control operation.
: Turns cruise control system on
or off.
RES+ : Resumes or increases cruise control speed.
SET- : Sets or decreases cruise control speed. ...
Follow either of these procedures:
Move the lever up (to RES+) and hold it.Your vehicle will accelerate. Release
the lever at the speed you want.
Move the lever up (to RES+) and release it immed ...
Other information:
1. Before closing the hood, check the following:
All filler caps in engine compartment must be correctly installed.
Gloves, rags or any other combustible material must be removed from the
engine compartment.
2. Return the support rod to its clip to prevent it from rattling.
3. Lower the hood u ...
Components
Connector Pin Information
No.
Connector A
Connector B
Connector C
1
Battery (+)
C CAN high
Assistant seat belt indicator
2
IGN 1
...
