Kia Carens: If you do decide to pull a trailer / Weight of the trailer

Kia Carens RP (2013-2018) Owners Manual / Driving your vehicle / Trailer Towing / If you do decide to pull a trailer / Weight of the trailer

What is the maximum safe weight of a trailer? It should never weigh more than the maximum trailer weight with trailer brakes. But even that can be too heavy.

It depends on how you plan to use your trailer. For example, speed, altitude, road grades, outside temperature and how often your vehicle is used to pull a trailer are all important. The ideal trailer weight can also depend on any special equipment that you have on your vehicle.

If you do decide to pull a trailer

Here are some important points if you decide to pull a trailer: Consider using a sway control.You can ask a hitch dealer about sway control. Do not do any towing with your car during its first 2,00 ...

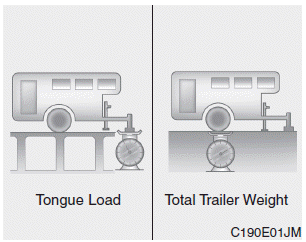

Weight of the trailer tongue

The tongue load of any trailer is an important weight to measure because it affects the total gross vehicle weight (GVW) of your vehicle. This weight includes the curb weight of the vehicle, any ca ...
