Kia Carens: Fuse/relay panel description / Engine compartment fuse panel (Diesel engine only)

Kia Carens RP (2013-2018) Owners Manual / Maintenance / Fuses / Fuse/relay panel description / Engine compartment fuse panel (Diesel engine only)

✽ NOTICE

The actual fuse/relay panel label may differ from equipped items.

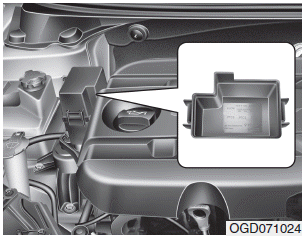

Engine compartment fuse panel (for diesel engine)

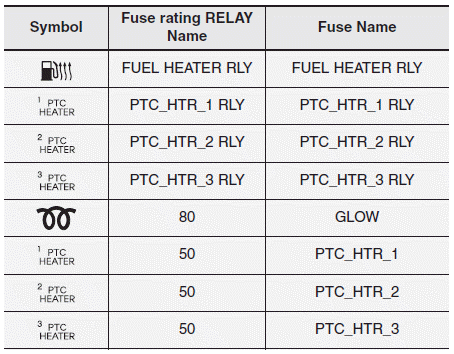

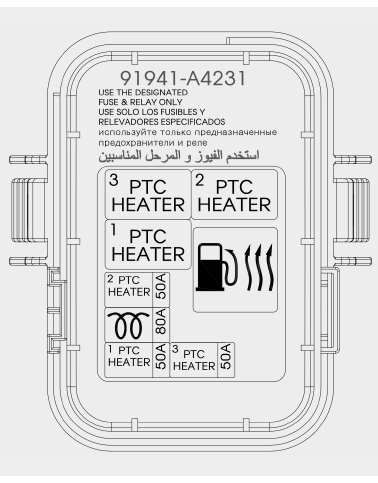

✽ NOTICE The actual fuse/relay panel label may differ from equipped items. Engine compartment main fuse panel (for gasoline engine) Engine compartment main fuse panel (for diesel engine) \ ...

Light bulbs

WARNING - Working on the lights Prior to working on the light, firmly apply the parking brake, ensure that the ignition switch is turned to the “LOCK”position (smart key: turn off the engine) an ...
