Kia Carens: Engine Control System / Fuel Pressure Control Valve Schematic diagrams

Kia Carens RP (2013-2018) Service Manual / Engine Control / Fuel System / Engine Control System / Fuel Pressure Control Valve Schematic diagrams

Circuit Diagram

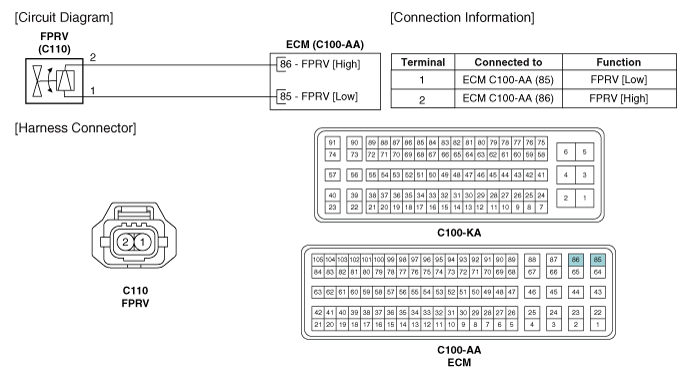

(M/T)

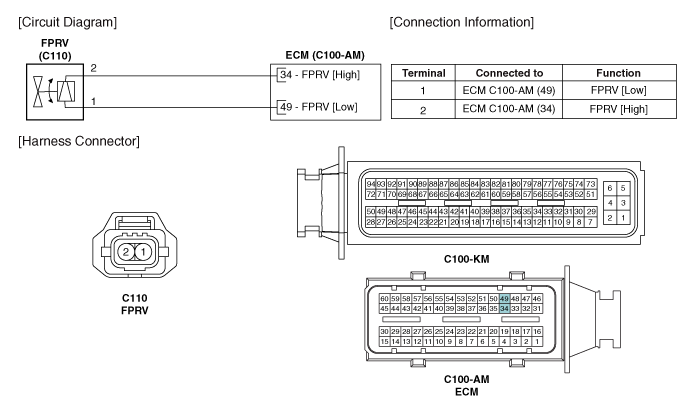

(A/T)

Fuel Pressure Control Valve Troubleshooting

Signal Waveform ...

Fuel Pressure Control Valve Repair procedures

Inspection 1. Turn the ignition switch OFF and disconnect the battery negative (-) cable. 2. Disconnect the fuel pressure regulator ...
