Kia Carens: Fuses And Relays / Relay Box (Engine Compartment) Components and components location

Kia Carens RP (2013-2018) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and components location

Component Location

Components and components location

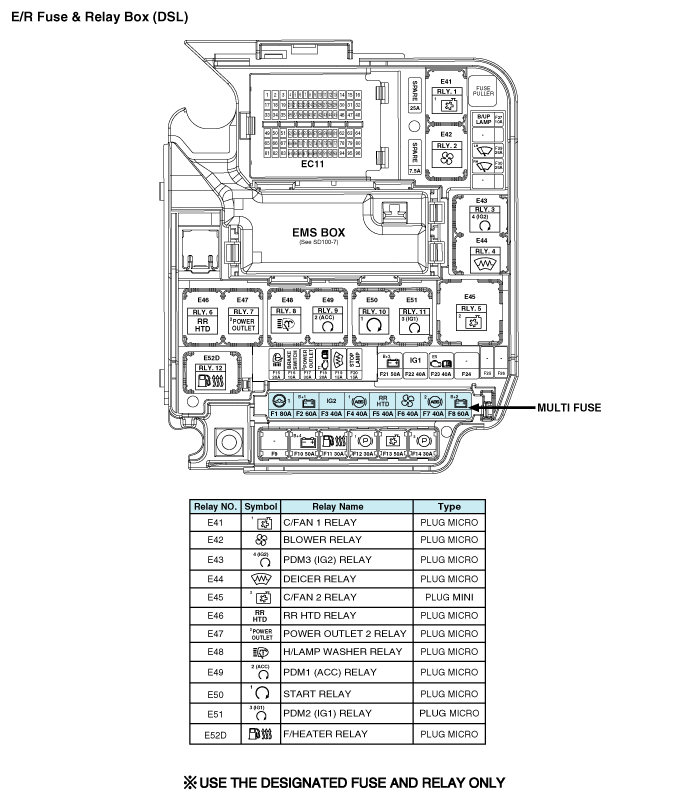

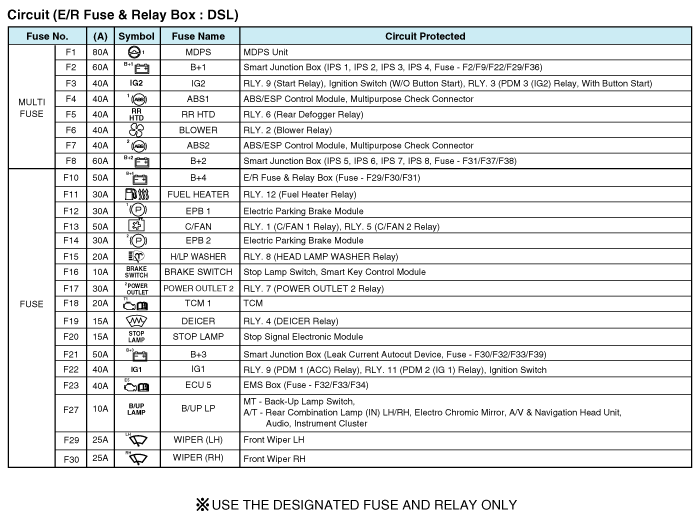

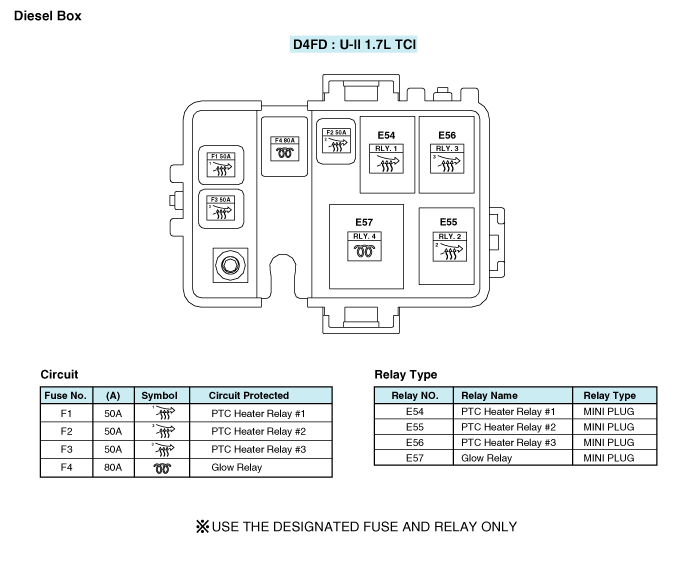

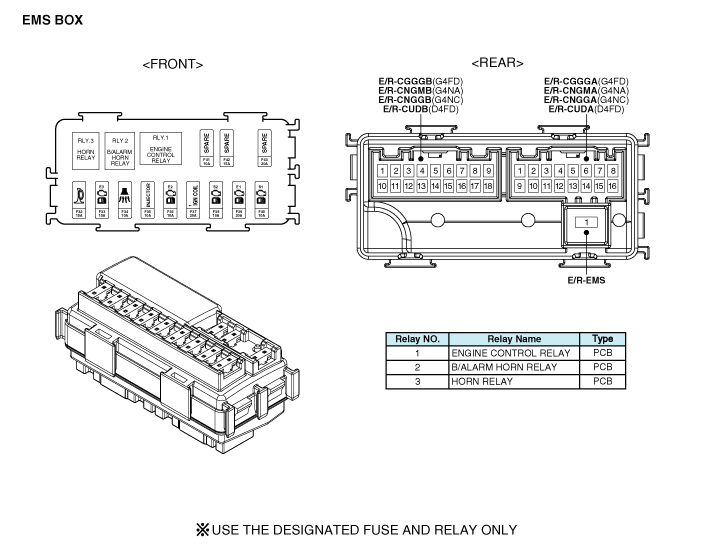

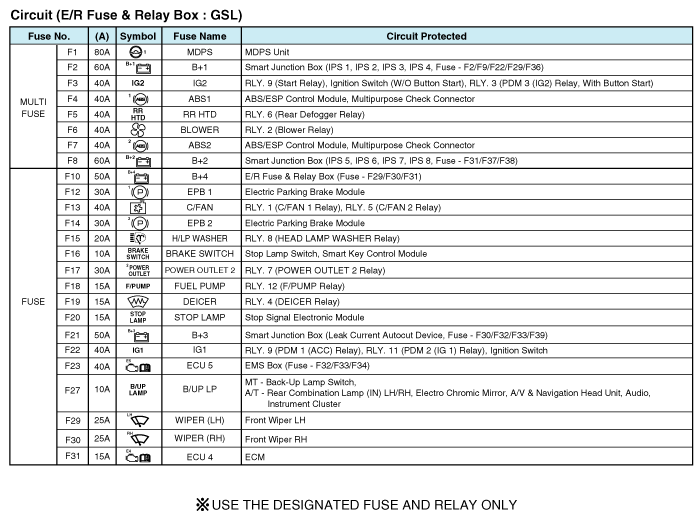

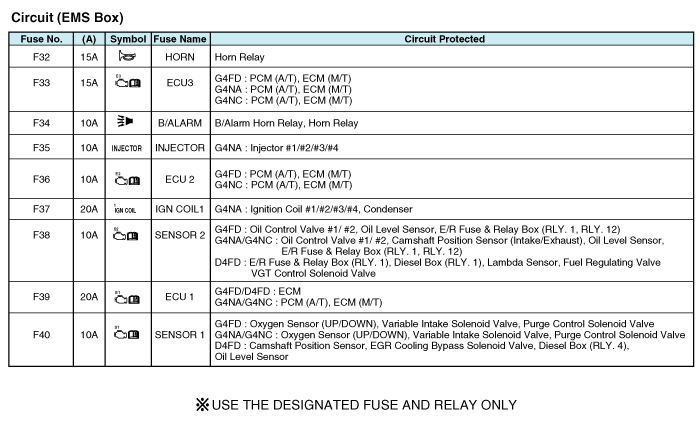

Component Location 1. Cooling fan relay (low) 2. Blower relay 3. IG2 relay 4. Deicer relay 5. Cooling fan relay (high) 6. Rear defogger relay ...

Relay Box (Engine Compartment) Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. P ...
