Kia Carens: Back-up Lamp Switch / Repair procedures
Kia Carens RP (2013-2018) Service Manual / Manual Transaxle System / Back-up Lamp Switch / Repair procedures
| Inspection |
| 1. |
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
|
| 2. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 3. |
Disconnect the back up lamp switch connector (A).
|
| 4. |

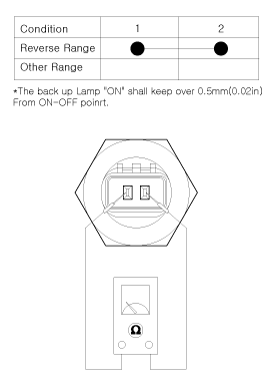

Check the continuity between no. 1 and 2 terminals of backup lamp switch.
When the shift lever is in reverse, there should be continuity.
|
| Replacement |
| 1. |
Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "Air Cleaner")
|
| 2. |
Remove the battery and battery tray.
(Refer to Engine Electrical System - "Battery")
|
| 3. |
Disconnect the back up lamp switch connector (A).
|
| 4. |
Remove the back up lamp switch (A).
|
| 5. |
Replace a new one and install the back up lamp switch.
|
Specifications
Specification
Item
Specification
Current voltage
13V
Working voltage
DC
10~15V&nb ...
